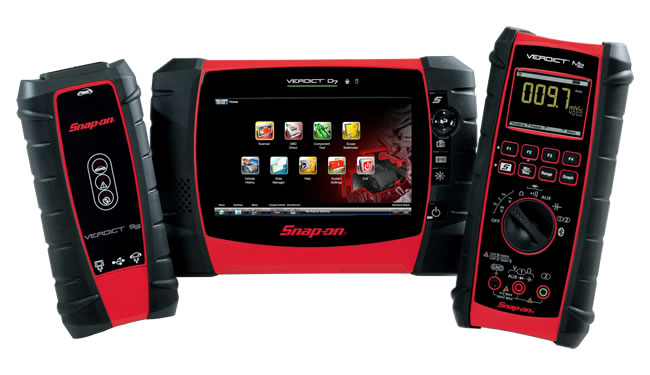

VERDICT® Diagnostic and Information System

EEMSGB324A

EVER NEEDED TO TEST IN MORE THAN ONE PLACE AT ANY ONE TIME?

Introducing a new concept in diagnostics. VERDICT, a unique new 3 part modular, wireless diagnostic tool that allows you to work on more than one area of the vehicle at any one time saving you time and money. Without changing keys or adaptors, move from system to system and turn a two person job into one. Retrieve fault codes, view live data, accesses Snap-on’s exclusive Troubleshooter help and be guided through component tests performing component calibrations through bi-directional functional tests as well as allowing online information to be viewed at the side of the car.

Wireless flexibility means not being tied to the diagnostic connector, with the remote display, access live readings anywhere around the vehicle. With its powerful class 1 Bluetooth connectivity use VERDICT to work freely around the car, under a ramp, consult with other technicians and even show customers live data, increasing your workshop efficiency without the fear of losing connection. A Windows^® operating system with built in Wi-Fi and internet browser allows you to easily multi task between viewing websites or your garage’s information system whilst the VERDICT diagnostic application runs in the background. VERDICT, so easy to use, just touch on an ICON to move from one function to the next.

*All Snap-on handheld product is sold with the latest software. Content and coverage varies from country to country. To check the latest release for the UK click here.

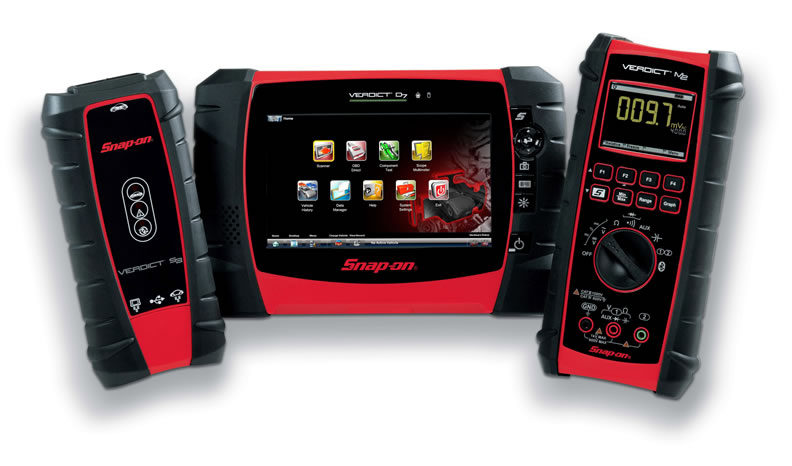

VERDICT Platform Features

A new world of possibilities is now open to you. Need to spin a wheel or check a connector while you watch live scanner data? The wireless VERDICT gives you the freedom to do it. Want to take a scope reading while you activate a sensor? You can do it without the help of another technician.

VERDICT D7 Touch Screen Remote Display Unit

The D7 touch screen display unit uses a long range Class 1 Bluetooth® unit that automatically connects with the S3 Scanner & M2 Component Test Meter remotely, without any wires, as soon as you turn it on. Store your customer’s data history from their vehicles, use the onboard camera to photograph the problem and email direct from the tool, or include on the customer’s invoice.

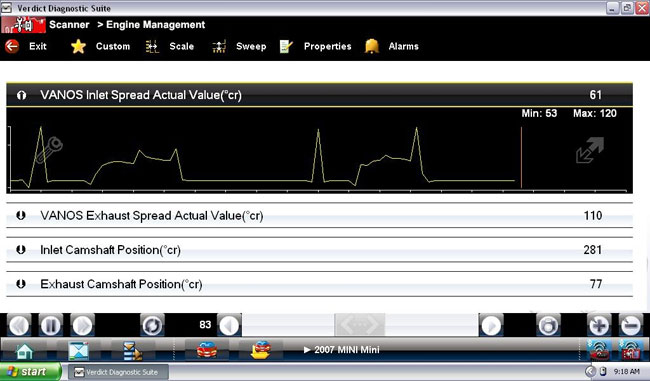

VERDICT S3 Wireless Scanner Module

With wireless connection to the VERDICT touch screen remote display unit, you only need one 16 pin keyless adapter to cover all manufacturers via the EOBD connector. Access hundreds of proprietary systems on over 20 specific vehicle manufacturers’ including OEM specific codes and data, bi-directional testing, relearns, adaptations and tips and timesavers from Troubleshooter. With over 15 years software development at your fingertips, you are no longer limited by wires or cables and have the flexibility to move around the vehicle whilst you’re scanning. If you need to use the scope or meter while you perform an actuator test, or if you need to get under the bonnet and inspect it, now you can.

VERDICT M2 Component Test Meter

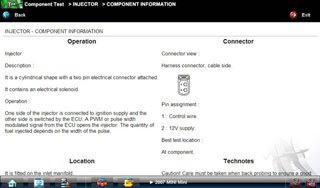

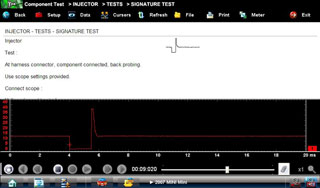

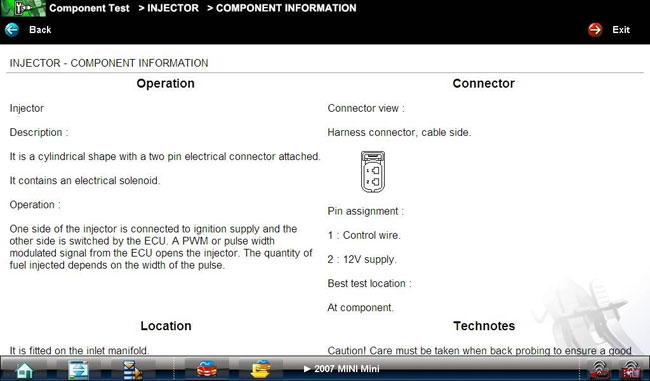

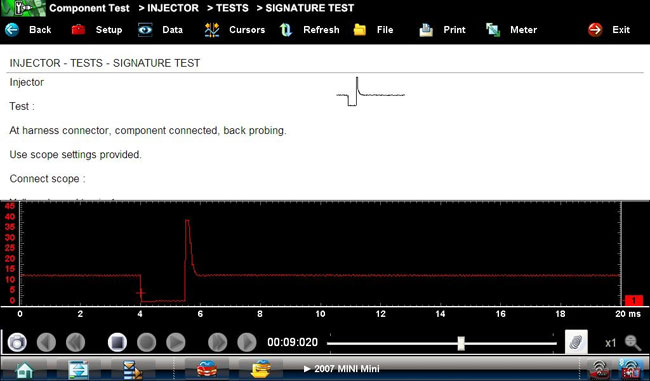

When a problem goes beyond the code, the VERDICT wireless M2 Component Test Meter automatically configures to give you guided in-depth component specific testing. Combining a high speed 2 channel oscilloscope and a digital graphing meter with CATIII/CATIV certification – it's hybrid ready. The M2 features Guided Component Tests for over 33,000 applications, meter presets, component locator and a database of known-good waveforms. With a high resolution fast colour screen and the stability of Class1 Bluetooth® connectivity, the M2 can be controlled remotely from the VERDICT or as a standalone automatically configuring multimeter. Simply hook up the S3 Scanner to the diagnostic connector, attach the M2 Component Test Meter wherever you need it and control both remotely from the VERDICT Display. Now you can be in three places at once increasing your productivity.
