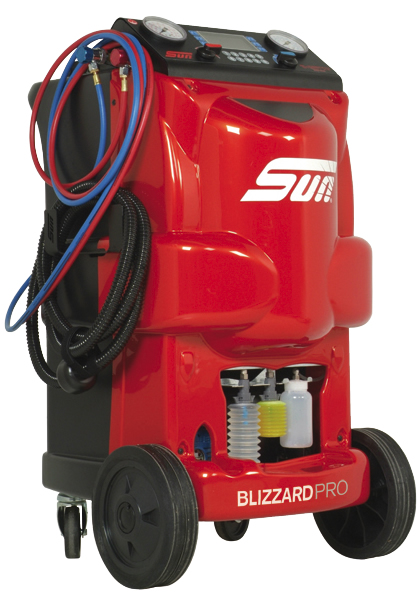

KoolKare Blizzard PRO

KoolKare Blizzard PRO

EEAC121C

The KoolKare Blizzard PRO is the top of the line model in the KoolKare range. With all the great features of the Blizzard model, the PRO goes even further with the inclusion of the KoolKlean package and optional Advanced Diagnostics. Also with this new updated model the unit can now service HD11 oil (Hybrid cars).

The KoolKlean system is a revolutionary purification system that cleans and sanitises the vehicle, eliminating any bad odours, such as cigarette smoke. The KoolKare Blizzard PRO is yet another way for a workshop to satisfy the needs of the vehicle owner.

Features

Fully automatic model
Automatic oil and dye injection
Hermetic and collapsible dye bottle system
Collapsible oil bottle
Large 22kg refrigerant cylinder
SAE2788 compliant
– Automatic air purge
– 95 % gas recovery
– +/- 15 gm accuracy
Comprehensive vehicle database including trucks, with manual input for new vehicles
Robust design, with easy mobility around the workshop
Integral tool storage tray
Easy to read gauges and large high contrast LCD graphic display
Onboard printer
Refrigerant management with operator code
USB communications port
Nitrogen leak check enabled software*
KoolKlean system

Options

AC Promo Pack
Accessory Kit
Flushing Kit
Nitrogen Leak Check Kit
FGAS Training

Specifications

Type of Refrigerant	R134a
Service Procedure	Full Automatic/manual
Voltage	220-240v / 50 – 60 Hz AC
Scale Resolution	±10g
Air Purge	Automatic air purge
Heated Cylinder	Yes
User Selectable Units of Measure	g (kg) oz (lb)
Storage Tray	Yes
Oil Scale Accuracy	±5g
Working Temperature Range	11 – 49 °C
Filters	2
Vacuum Pump Capacity	100 l/min rated capacity, 0.1 mbar vacuum level
Compressor	Sealed 12cc
Recovery Speed Liquid Phase	300g/min
Recovery/Refrigerant Cylinder Capacity	22L refillable
Display	115 x 65 mm
Overall Size (W x D x H)	57 X 63 X 103 cm
Weight	80kg
Hermetic Oil Bottle (PAG46)	Yes
Oil Change Procedure	Yes
Hybrid Function	Standard
Upgradable Function to HFO	Yes
Collapsible Dye Fluid Tank	Yes
Vehicle Database	Advanced/ manual input for New Models + TRUCK
Automatic Vacuum Leak Check	Yes
Service Hose Length	3 meters
Following SAE 2788	Yes
Class 1 Compliant Gauges	Yes
Onboard Printer	Yes
Refrigerant Management	Yes
Diagnostic Package	Optional
Nitrogen Leak Check	Yes
KoolKlean Package	Yes
Visualisation Min-Max High-Low Pressure	Yes
Flushing Operation (with Optional Flushing Kit)	Yes
