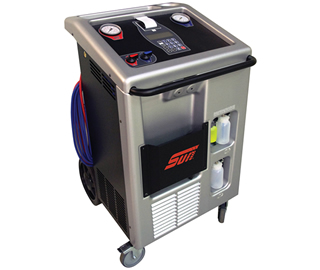

KoolKare HD

EEAC118B

The Sun KoolKare HD is a fully automatic single-gas station for recovering, recycling, and recharging R134 refrigerant, for use with Truck, coaches, agricultural and industrials vehicles. With its large 40 litre tank and large capacity vacuum gear pump for fast recharging of large systems (1kg/min), this air con unit would be ideal for any commercial vehicle workshop.

Features

Alarms: high pressure, full bottle, empty bottle
Service alarm: acoustic and visual, for maintenance and filter replacement request
Onboard bottle filling: automatic
Automatic leak check during vacuum phase
Automatic discharge of non-condensable gases from the bottle
Gear pump for refrigerant charging
Database advanced: integrated database allowing the user to enter new vehicle models
Refrigerant management: for creating a customized archive of all refrigerant transactions
Flushing software for automatic flushing of series A/C systems. For use with EAK0234N20A
USB port for software updates

Options

AC Promo Pack
Flushing Kit
Nitrogen Leak Check Kit
FGAS Training

Specifications

Type of Refrigerant	R134a
Service Procedure	Full Automatic/manual
Voltage	220-240v / 50 – 60 Hz AC
Scale Resolution	±10g
Air Purge	Automatic air purge
Heated Cylinder	No
User Selectable Units of Measure	g (kg) oz (lb)
Storage Tray	Yes
Oil Scale Accuracy	±5g
Working Temperature Range	11 – 49 °C
Filters	2
Vacuum Pump Capacity	170 l/min rated capacity, 0.1 mbar vacuum level
Compressor	Sealed 21cc
Recovery Speed Liquid Phase	500g/min
Recovery/Refrigerant Cylinder Capacity	40L refillable
Display	123 x 40 mm
Overall Size (W x D x H)	80 X 120 X 115 cm
Weight	140kg
Hermetic Oil Bottle (PAG46)	No
Oil Change Procedure	No
Hybrid Function	No
Upgradable Function to HFO	No
Collapsible Dye Fluid Tank	Yes
Vehicle Database	Advanced/ manual input for New Models + TRUCK
Automatic Vacuum Leak Check	Yes
Service Hose Length	6 meters
Class 1 Compliant Gauges	Yes
Onboard Printer	Yes
Refrigerant Management	Yes
Diagnostic Package	No
Nitrogen Leak Check	No
KoolKlean Package	No
Visualisation Min-Max High-Low Pressure	No
Flushing Operation (with Optional Flushing Kit)	Yes
