PIT Lanes

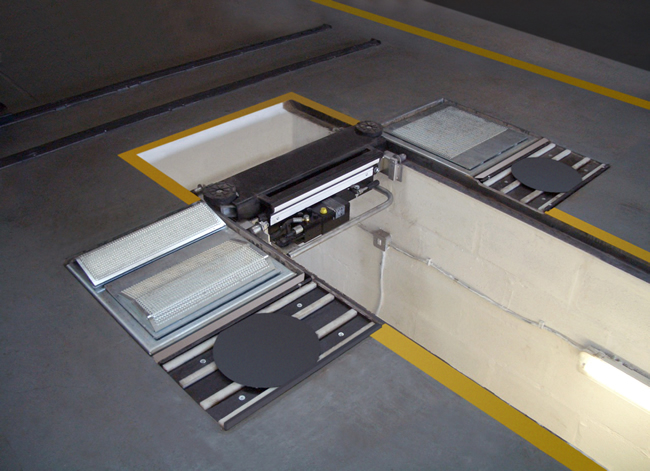

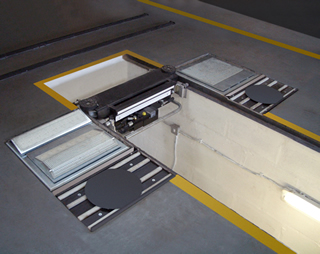

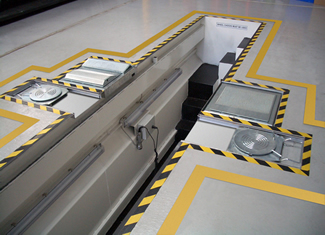

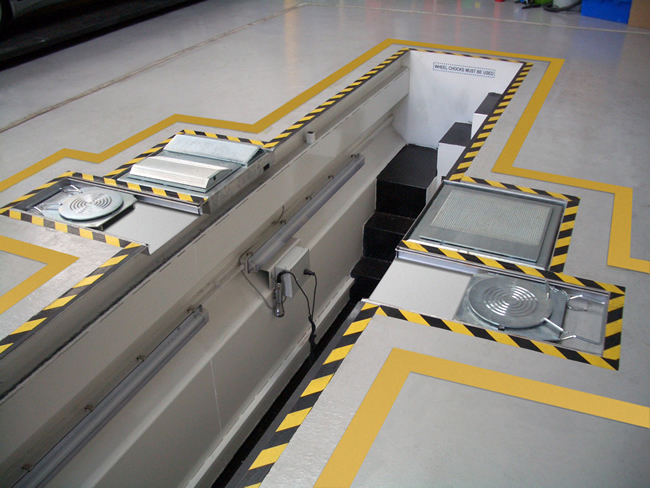

The Sun MOT PIT Lane is the package to consider for garages with height restrictions in their premisses. The PIT Lane is available in Standard, ATL and OPTL configuration for Class IV and Class VII VOSA approved testing stations.

If you have an existing Standard MOT Bay why not consider an upgrade to a Sun One Person Test Lane, and save labour costs!

Features

Bearing radius plates
Jacking beam 2000kg or 3000kg
Class IV or VII roller brake tester, with easy to use PC software
Brake roller cover plates
Rail mounted Headlight beam setter

Options

Emissions Tester
Ancillary pack
Convex mirrors

Specifications

Play Detectors
Operation	Electro-hydraulic
Maximum Capacity on Each Plate	1300kg
Maximum Stroke Platform P1 mm	± 40
Maximum Angle Platform P2 °	± 15
Maximum Thrust for Each Plate	800kg
Minimum Inner Distance (suggested)	900mm
Maximum Outer Distance (suggested)	2020mm
Power	2.2kw
Weight	150kg

Jacking Beam
Capacity	2000kg	3000kg
Lifting Displacement	410mm	410mm
Minimum Extension	925mm	925mm
Maximum Extension	1620mm	1470mm

Headlight Aligner
Height	1520/1770mm
Maximum Height of Beam Measurement	1410mm
Width	610mm
Minimum Height of Beam Measurement	240mm
Length	610mm
Focal Length	488mm

Brake Tester
Maximum Axle Weight	3000kg	6000kg
Roller Coefficient Dry-wet	0.9-0.7/0.7 - 0.5	0.9-0.7/0.7 - 0.5
Operating Temperature	0°C - 70°C	0°C - 70°C
Electronics
Principle of Measurement	DMS	DMS
Processing if Measured Value	Microprocessor	Microprocessor
Power Supply
Voltage	3N - PE - 400V	3N - PE - 400V
Frequency	50Hz	50Hz
Fuse Rating C TYPE	32	32
Motor Power	2 x 3.7kw	2 x 3.7kw
Main Lead Diameter	5 x 4mm	5 x 4mm
Roller Frame
Roller Diameter	204mm	204mm
Roller Length	700mm	1000mm
Roller Displaced in Height	25mm	25mm
Idle Running Speed	5.2km/h	2.6km/h

Optional Emissions Tester

DGA 2500
Operating Temperature	5°C to 40°C
Storage Temperature	-20°C to 60°C
Relative Humidity	to 90% non-condensing
Maximum Atmospheric Pressure Variation	700 – 1100 mbar
Power Supply
Voltage	115/230V
Range	90 - 260V
Currency	7.5/6A
Frequency	47 - 63Hz
Gas Measurements	Range
O2	0% to 25%
CO	0% to 9.99%
CO2	0% to 18%
HC	0ppm to 2000ppm
	2000ppm to 5000ppm
	5000ppm to 9000ppm
NO	0ppm to 5000ppm
RPM	0rpm to 9999rpm
°C	0°C to 120°C
°F	14°F to 302°F
Lambda (I)	0.600 to 1.700 (calculated)
AFR	5.00 to 50.00 (calculated)
