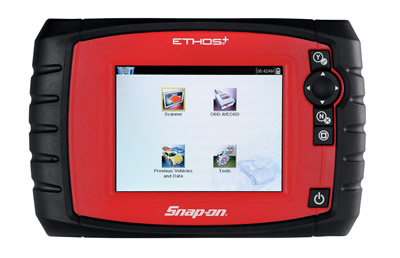

ETHOS® Plus Scan Tool

ETHOS Plus Scan Tool Features

• Big, easy to view 5.6 inch full-color VGA display for clear, accurate results
• Keyless vehicle adapter for simple hookup
• Lightning fast operation with 4-way keypad and touchscreen
• Coverage for over 40 makes of domestic, Asian, and (optional) European vehicles
• Vehicle-specific coverage for dozens of systems including new technologies like TPMS, Hybrid power, Body controls, Suspension and Steering, Park assist
• Read and clear OBD-II and OEM-specific codes in seconds
• Compare seven live data parameters on screen at once, or graph four side-by-side to isolate the root cause of vehicle problems
• Customizable tools to fit the way you work - pause & review live data, create custom data lists, set min/max triggers to flag abnormal data, zoom in on graphs to monitor vehicle performance over time
• Create your own personal reference library. Save, print, share, using ShopStream Connect™ software available at no charge! Click here for more information

ETHOS Plus Specifications

Overall dimensions:
Width: 9.15 inches 232.4 mm
Height: 5.85 inches 148.6 mm
Depth: 1.85 inches 47.0 mm
Weight (including batteries): 2.0 lbs. 907 g

• Display screen: 5.6 inch diagonal, daylight-readable LCD; 640x480 pixel; Color; Resistive LCD touchscreen
• Plug and play feature automatically powers up when connected to vehicle; Ready to work in 10 seconds
• User-programmable shortcut key for popular functions
• High-capacity microSD™ card contains the diagnostic software and stores your data files
• OEM-specific coverage for 1980-newer domestic vehicles; 1983-newer Asian vehicles; 1992-newer European vehicles (pre-1996 vehicles require optional OBD-I adapters) (European vehicle coverage requires optional software & adapters)
• Read and clear codes, with detailed code descriptions on-screen; View live data parameters (PIDs)
• Covers all 10 modes of OBD-II for powerful emissions and driveability testing. Read & clear codes, reset the MIL, view current data, determine emissions readiness, onboard monitors, ECU info, pending codes, permanent codes, and more
• Embedded SMX operating system dedicated to diagnostic functions for speed and reliability
• Icon-based navigation for fast results

Includes:

• ETHOS+ scan tool
• 5 foot data cable with keyless OBD-II connector
• USB cable
• Padded nylon carry case
• 6 AA batteries
• AC power adapter
• Quick start guide

More Cars, More Cash. Must be a Sign.

Accuracy breeds productivity. The Software Bundle 13.2 upgrade is the best way to ensure the precision of all your diagnostic tools. Whether you need driveability, undercar, transmission, diesel, body control or just about any repair you can think of, Bundle 13.2 offers advanced technology to help you diagnose problems, find solutions and make more profit.

Optional European vehicle Scanner software is available for ETHOS Plus (covers Audi, BMW, Jaguar, Land Rover, Mercedes-Benz, MINI, SMART, VW and Volvo).
