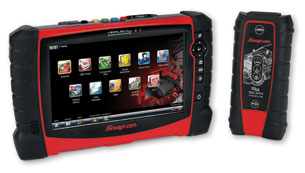

VERUS® PRO Diagnostic and Information System

VERUS PRO Diagnostic & Information System Features

• Stay connected to the vehicle and the internet while moving freely around the service bay
• Ready faster – less than 30 seconds for VERUS PRO software suite to load
• New thin-edge profile display tablet is 3 lbs lighter than previous model
• Modular, dockable scope/meter with 9 ft USB cable for extended reach and portability
• Exclusive SureTrack™ interactive community provides diagnostic experience, repair timesavers and parts replacement records from actual completed repairs
• Genuine Windows^® operating system for true multitasking
• Shared vehicle ID – select the vehicle once for all diagnostic functions

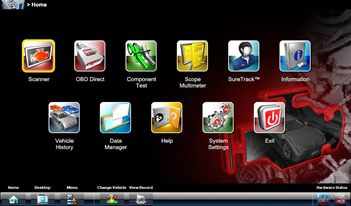

• Easy navigation - shows exactly the systems and tests available for the selected vehicle
• Built-in browser and Wi-Fi to access your choice of web resources – parts suppliers, technical forums, repair information systems, OEM websites

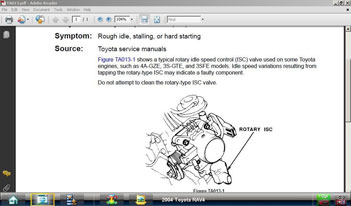

• Exclusive Snap-on Fast-Track^® Troubleshooter provides millions of vehicle-specific code tips, symptom tips and timesavers for a faster repair
• Industry-leading functions, tests and coverage previously found only in expensive factory tools

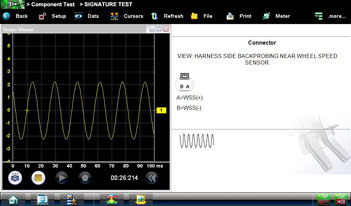

• Avoid unnecessary parts replacement. Exclusive Fast-Track Guided Component Tests, component locator, known good values, and waveform library help verify good/bad components.

Note: Some functions shown require an internet connection

VERUS PRO Specifications

Display Tablet

• Thin-profile tablet with 10" high-resolution 1024x600 touch screen for a detailed view
• On-screen touch keyboard
• Built-in camera to save and share photos for your repair records
• User-programmable shortcut key for frequently used actions
• Bluetooth^® wireless and Wi-Fi to access your favorite web resources
• High-energy lithium-ion battery pack for hours of continuous operation
• USB, audio and auxiliary ports make it easy to add accessories
• Big 250GB hard drive to save data and install your own applications

Software

• Exclusive ShopStream™ integrated diagnostic suite with one-touch access to all major functions: scanner, scope, guided component tests, online expert forum, vehicle records, and the optional ShopKey^® Repair Information System
• Genuine Windows^® multi-tasking to view multiple applications side-by-side
• Configure display options, set triggers, record and playback results with the touch of your finger
• Powerful data manager saves vehicle records, photos, technician notes, screen images, scanner and scope data

Scanner Module

• Single keyless adapter for OBD-II vehicle applications – saves time
• Connects wirelessly to the display tablet with Bluetooth® for remote operation
• OEM-specific coverage for over 40 makes, as far back as 1980 (European optional)

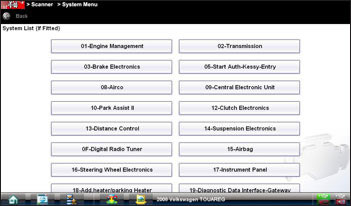

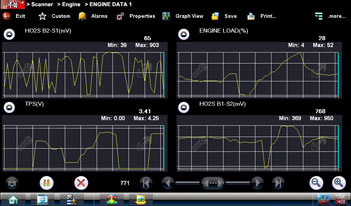

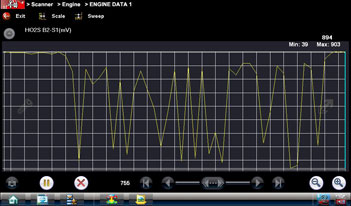

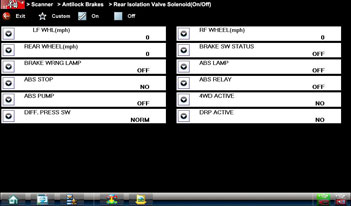

• Codes, live data, functional tests, relearns and adaptations for dozens of vehicle systems
• Exclusive Fast-Track^® Troubleshooter with millions of validated code tips, symptom tips and timesavers

Scope Module

• More flexibility with the new hot-dockable scope module with 9 ft USB extension cord
• High-speed 4-channel lab/ignition scope and digital/graphing meter
• 6 megasamples/second sample rate and glitch capture detects faults other scopes miss
• Scale range: 0-100mV to 0-400V, 50kV secondary ignition
• Sweep rate: 50 microseconds to 20 seconds (5 min in GMM mode) so you don’t miss a thing
• Exclusive Fast-Track guided component tests for 40 domestic, Asian and European makes
• VDC, VAC, ohms, frequency, duty cycle, pulse width, diode test and more

More Cars, More Cash. Must be a Sign.

Accuracy breeds productivity. The Software Bundle 13.2 upgrade is the best way to ensure the precision of all your diagnostic tools. Whether you need driveability, undercar, transmission, diesel, body control or just about any repair you can think of, Bundle 13.2 offers advanced technology to help you diagnose problems, find solutions and make more profit.

Want the most powerful diagnostics available today? Click here or contact your Snap-on Representative.

Optional European vehicle Scanner software is available for VERUS PRO (covers Audi, BMW, Jaguar, Land Rover, Mercedes-Benz, MINI, SMART, VW and Volvo).
